A JMS client uses a Connect connection factory to connect to a JMS provider. Connect captures all of the connection information in order to connect to the connection factory.
Creating a New JMS Event Handler
To create a new JMS event handler:- Navigate to the Instance Admin screen. The System Parameters
screen displays.
- Click on the Event Handling sub-menu in the menu bar on the left,
followed by the JMS menu option. The JMS screen
appears.
- From the Commands dropdown, select New Connection
Factory.

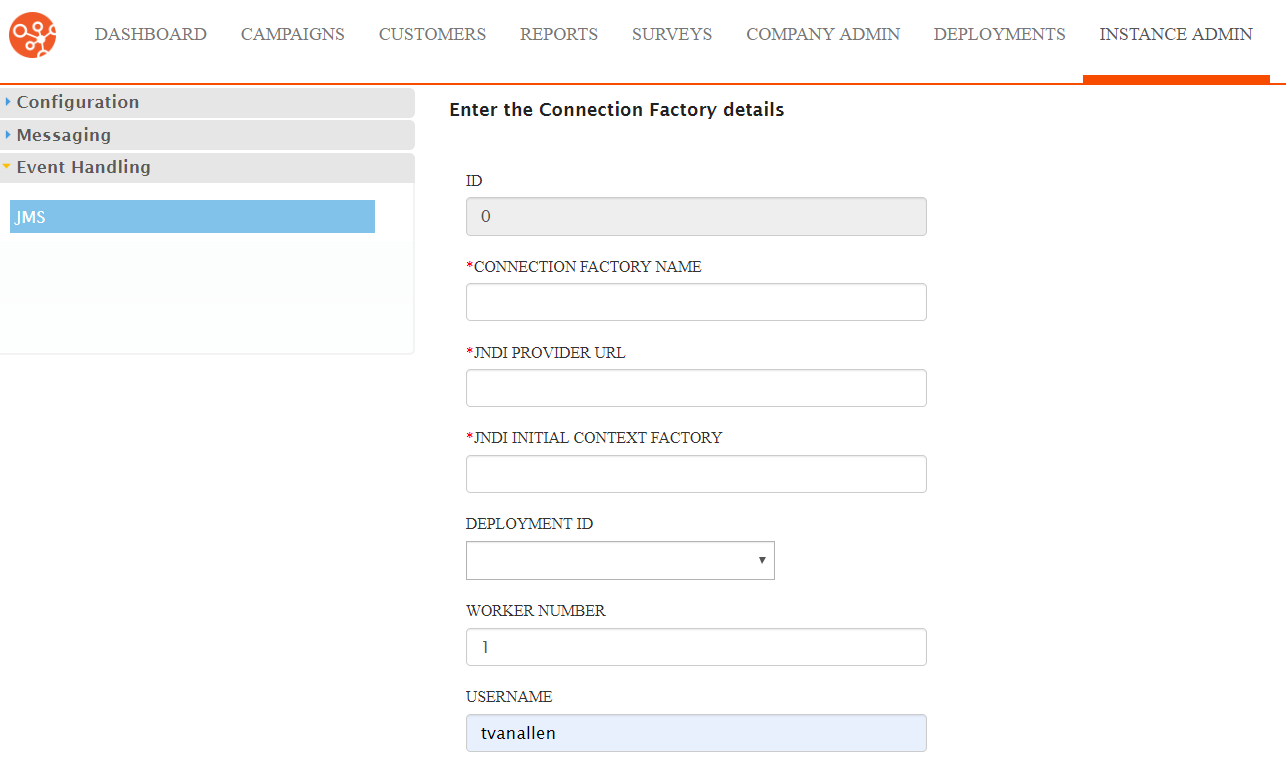

The Enter the Connection Factory Details screen displays.
- Enter the connection factory details:
- Connection Factory Name: Name for the connection factory used internally
- JNDI Provider URL: The web address for the JNDI (Java Naming and Directory Interface) service provider
- JNDI Initial Context Factory: The initial context name for the JNDI service provider
- Deployment ID: The Connect deployment associated with the connection factory
- Worker Number: The worker number for the connection factory
- Username: The username that will be used to connect to the service
- Password: The password for the username that will be used to connect to the service
- Properties: Any connection properties required for the services
- Negative Only Replies: Indicates that the connection factory will only be used for negative only replies
- To cancel without saving the connection factory, click the Cancel button. The JMS screen displays. The connection factory is not saved and does not appear in the list of connection factories.
- Click Save. The JMS screen appears with the newly created connection factory saved and added to the list.
