Using GCM Delivery Channel in a Campaign

Connect's GCM Delivery Channel assumes that the content used to create each GCM message is JSON object. A JSON payload in GCM must contain at least two elements:

1. registration_ids - a JSON list containing the Registration ID of the destination.
2. data - a JSON array containing the key/value pairs of the message payload.

A sample JSON message is shown below.

{
  "registration_ids": ["445865929923"],
  "data": {
    "score": "5x1",
    "time": "15:10"
  }
}

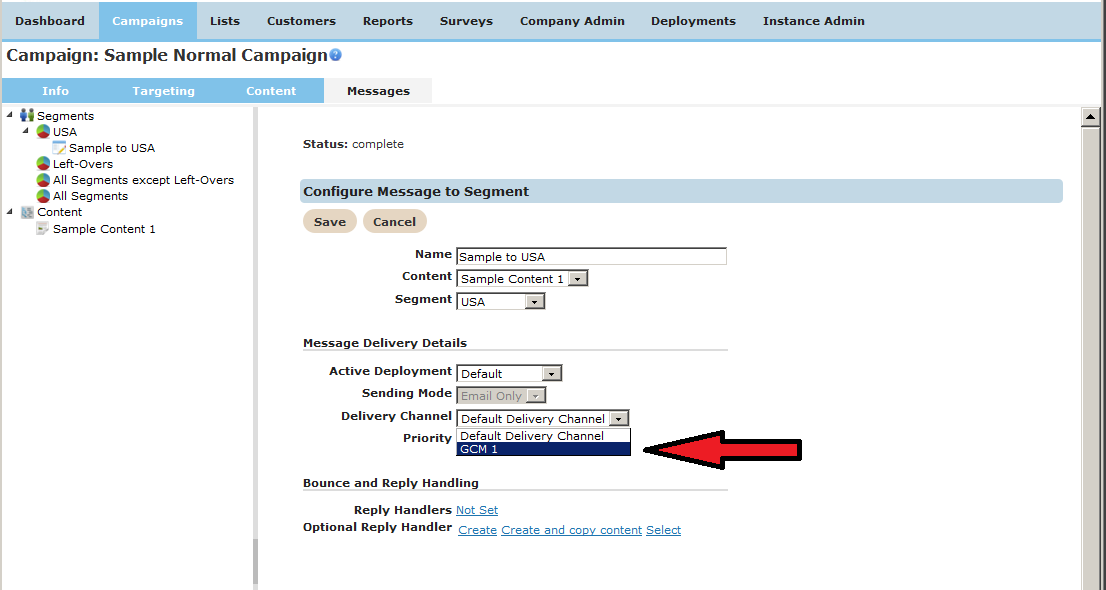

In the message content screen, specify the GCM content as a short text content URL. Static content or scripted static content URLs may use CONNECT merge tags. Note that GCM requires the message payload to contain the Registration ID of the destination device, so if static content is used, it must contain the merge tag of the Registration ID:

{ "registration_ids": ["<%[Android Registration ID]%>"], ... }


In the fragment above, <%[Android Registration ID]%> is the merge tag for the customer attribute that contains the GCM Registration ID for the Android device.

Other merge tags may be used in the JSON content as well. For example, if the score and time values used above were supplied as Event Parameters in an Event-Triggered campaign, they could be used as merge tags in the static content template shown below:

{
  "registration_ids": ["<%[Android Registration ID]%>"],
  "data": {
    "score": "<%[evnt:Score]%>",
    "time": "<%[evnt:Time]%>"
  }
}


This static content template could be used to produce the sample JSON message shown above.
